PRODUCT DESCRIPTION

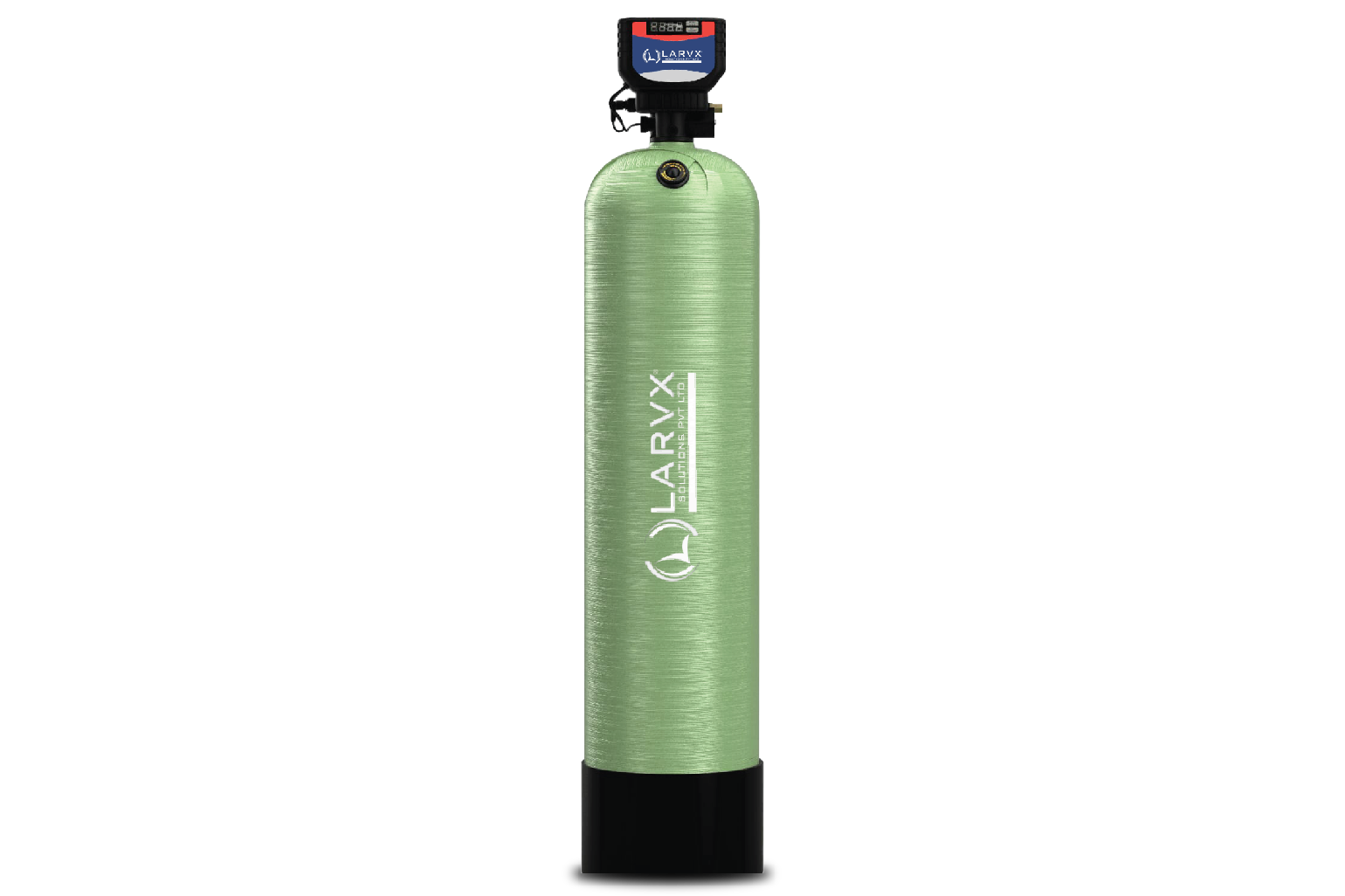

AUTOMATIC IRON FILTER-5000
LARVX Automatic Iron Filter-5000 is designed to efficiently remove high levels of dissolved iron from raw water, delivering clear, clean, and iron-free water for demanding applications.
Superior Iron Removal
The LARVX Iron Filter-5000 effectively eliminates dissolved iron and iron particles, preventing staining, metallic taste, and long-term damage to pipelines, fixtures, and equipment.
High Capacity Filtration Performance
Engineered for large-scale and high-demand usage, the Iron Filter-5000 features an automatic filtration system that ensures mud-free, high-quality water while enhancing clarity and overall system efficiency.
Specifications
MODEL : LI-5
WATER FLOW : Up to 3.0 m³/hr
TANK SIZE (PRESSURE VESSEL) : 16 × 65, 2.5″ Top Opening
WORKING PRESSURE : Minimum 2.0 Kg/cm² | Maximum 3.5 Kg/cm²
FILTER MEDIA : ISR Resin & Coarse Silex
ISR RESIN QUANTITY : 110 Litres
COARSE SILEX : 15 Kg
OUTPUT @ 5 ppm IRON : 22 m³
INLET / OUTLET / DRAIN FITTING : 1 Inch
PROCESS VALVE : Fully Programmable Automatic Valve
VALVE POWER SUPPLY : 12 V DC / 1.5 Amp Adapter
ELECTRIC SUPPLY : 230 V AC / 6 Amp
TREATED WATER IRON : < 0.3 ppm
